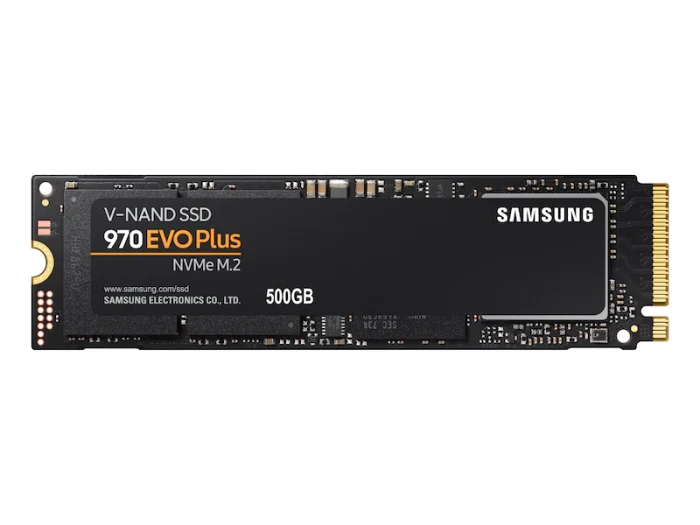

SamSung 970 EVO Plus NVMe® M.2 SSD 500GB

Product Type

NVMe SSD

Storage Type

Internal

Interface

PCIe Gen 3.0 x 4, NVMe 1.3

Read/Write Speeds

3,500/3,200 MB/s

Usage Application

Client PCs

Series

970 EVO Plus

Consumer

Yes

Capacity

500GB (1GB=1 Billion byte by IDEMA) * Actual usable capacity may be less (due to formatting, partitioning, operating system, applications or otherwise)

Sequential Read Speed

Up to 3,500 MB/s * Performance may vary based on system hardware & configuration

Sequential Write Speed

Up to 3,200 MB/s * Performance may vary based on system hardware & configuration

Random Read Speed

Random Read (4KB, QD32): Up to 480,000 IOPS; Random Read (4KB, QD1): Up to 19,000 IOPS * Performance may vary based on system hardware & configuration

Random Write Speed

Random Write (4KB, QD32): Up to 550,000 IOPS; Random Write (4KB, QD1): Up to 60,000 IOPS * Performance may vary based on system hardware & configuration

Controller

In-house

NAND Flash

Samsung V-NAND 3-bit MLC

Cache Memory

Samsung 512MB Low Power DDR4 SDRAM

Trim Support

Supported

AES Encryption

AES 256-bit Encryption (Class 0)TCG/Opal IEEE1667 (Encrypted drive)

Security

AES 256-bit Full Disk Encryption, TCG/Opal V2.0, Encrypted Drive (IEEE1667)

S.M.A.R.T. Support

Supported

GC (Garbage Collection)

Auto Garbage Collection Algorithm

WWN Support

Not supported

Device Sleep Mode Support

Yes

Internal Storage

Samsung V-NAND 3-bit MLC

Temperature proof

Yes

NVMe

Yes

Gaming SSDs

Yes

M.2 2280

Yes

Average Power Consumption (system level)

* Average: 5.8 W * Maximum: 9 W (Burst mode) * Actual power consumption may vary depending on system hardware & configuration

Power consumption (Idle)

Max. 30 mW * Actual power consumption may vary depending on system hardware & configuration

Voltage

3.3 V ± 5 % Allowable voltage

Reliability (MTBF)

1.5 Million Hours Reliability (MTBF)

Operating Temperature

0 – 70 ℃ Operating Temperature

Shock

1,500 G & 0.5 ms (Half sine)

Product

M.2 (2280)

Product

3.16″ x 0.87″ x 0.09″

Product

0.3 oz.

Management SW

Magician Software for SSD management
